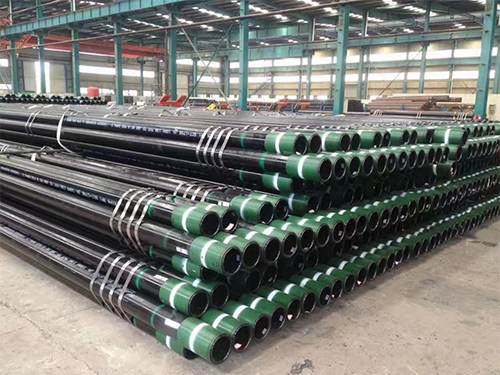

API 5CT OIL CASING

Standard:

API SPEC 5CT、API SPEC 5B、ISO 11960:2004

Grade:

J55、K55、N80-1、N80Q、L80、C95、P110

Size:

OD:114.3~339.7mm, Thk:5.21~22.22mm(4 1/2"~13 3/8")

thread type:

STC, LC,BC

Length:

R2(7.62m~10.36m)、R3(10.36m~14.63m)

Usage:

From the surface of the earth into the drilling hole as lining wall,play a role in fixing oil and gas well wall or well bore.

Speficication:

4-1/2"CASING API 5CT OD 4-1/2" 11.60lb/ft 4-1/2" 11.6PPF 114.3*6.35 J55 K55 N80 L80 P110 BTC LC SC
4-1/2"CASING API 5CT OD 4-1/2" 13.50lb/ft 4-1/2" 13.5PPF 114.3*7.37  J55 K55 N80 L80 P110 BTC LC SC
5"CASING API 5CT OD 5" 15.00lb/ft 15PPF 5" 127*7.52  J55 K55 N80 L80 P110 BTC LC SC
5"CASING API 5CT OD 5" 18.00lb/ft 18PPF 5" 127*9.19  J55 K55 N80 L80 P110 BTC LC SC
5-1/2"CASING API 5CT OD 5-1/2" 17.00lb/ft 5-1/2" 17PPF 139.7*7.72  J55 K55 N80 L80 P110 BTC LC SC
5-1/2"CASING API 5CT OD 5-1/2" 20.00lb/ft 5-1/2" 20PPF 139.7*9.17  J55 K55 N80 L80 P110 BTC LC SC
5-1/2"CASING API 5CT OD 5-1/2" 23.00lb/ft 5-1/2" 23PPF 139.7*10.54 J55 K55 N80 L80 P110 BTC LC SC
6-5/8"CASING API 5CT OD 6-5/8" 24.00lb/ft 6-5/8" 24PPF 168.28*8.94  J55 K55 N80 L80 P110 BTC LC SC
6-5/8"CASING API 5CT OD 6-5/8" 28.00lb/ft 6-5/8" 28PPF 168.28*10.59 J55 K55 N80 L80 P110 BTC LC SC
7"CASING API 5CT OD 7" 23.00lb/ft 7" 23PPF 177.8*8.05  J55 K55 N80 L80 P110 BTC LC SC
7"CASING API 5CT OD 7" 26.00lb/ft 7" 26PPF 177.8*9.19  J55 K55 N80 L80 P110 BTC LC SC
7"CASING API 5CT OD 7" 29.00lb/ft 7" 29PPF 177.8*10.36  J55 K55 N80 L80 P110 BTC LC SC
7"CASING API 5CT OD 7" 32.00lb/ft 7" 32PPF 177.8*11.51 J55 K55 N80 L80 P110 BTC LC SC
8-5/8"CASING API 5CT OD 8-5/8" 32.00lb/ft 8-5/8"  32PPF 219.08*8.94  J55 K55 N80 L80 P110 BTC LC SC
8-5/8"CASING API 5CT OD 8-5/8" 36.00lb/ft 8-5/8" 36PPF 219.08*10.16  J55 K55 N80 L80 P110 BTC LC SC
9-5/8"CASING API 5CT OD 9-5/8" 36.00lb/ft 8-5/8" 36PPF 244.48*8.94  J55 K55 N80 L80 P110 BTC LC SC
9-5/8"CASING API 5CT OD 9-5/8" 40.00lb/ft 9-5/8" 40PPF 244.48*10.03  J55 K55 N80 L80 P110 BTC LC SC
9-5/8"CASING API 5CT OD 9-5/8" 43.50lb/ft 9-5/8" 43.5PPF 244.48*11.05 J55 K55 N80 L80 P110 BTC LC SC
9-5/8"CASING API 5CT OD 9-5/8" 47.00lb/ft 9-5/8" 47PPF 244.48*11.99  J55 K55 N80 L80 P110 BTC LC SC
9-5/8"CASING API 5CT OD 9-5/8" 53.50lb/ft 9-5/8" 53.5PPF 244.48*11.99 J55 K55 N80 L80 P110 BTC LC SC
10-3/4"CASING API 5CT OD 10-3/4" 40.50lb/ft 10-3/4" 40.5PPF 273.05*8.89  J55 K55 N80 L80 P110 BTC LC SC
10-3/4"CASING API 5CT OD 10-3/4" 45.50lb/ft 10-3/4" 45.5PPF 273.05*10.16  J55 K55 N80 L80 P110 BTC LC SC
13-3/8"CASING API 5CT OD 13-3/8" 54.50lb/ft 13-3/8" 54.5PPF 339.72*9.65  J55 K55 N80 L80 P110 BTC LC SC
13-3/8"CASING API 5CT OD 13-3/8" 61.00lb/ft 13-3/8" 61PPF 339.72*10.92  J55 K55 N80 L80 P110 BTC LC SC
13-3/8"CASING API 5CT OD 13-3/8" 68.00lb/ft 13-3/8" 68PPF 339.72*12.19  J55 K55 N80 L80 P110 BTC LC SC
